Detalles del producto

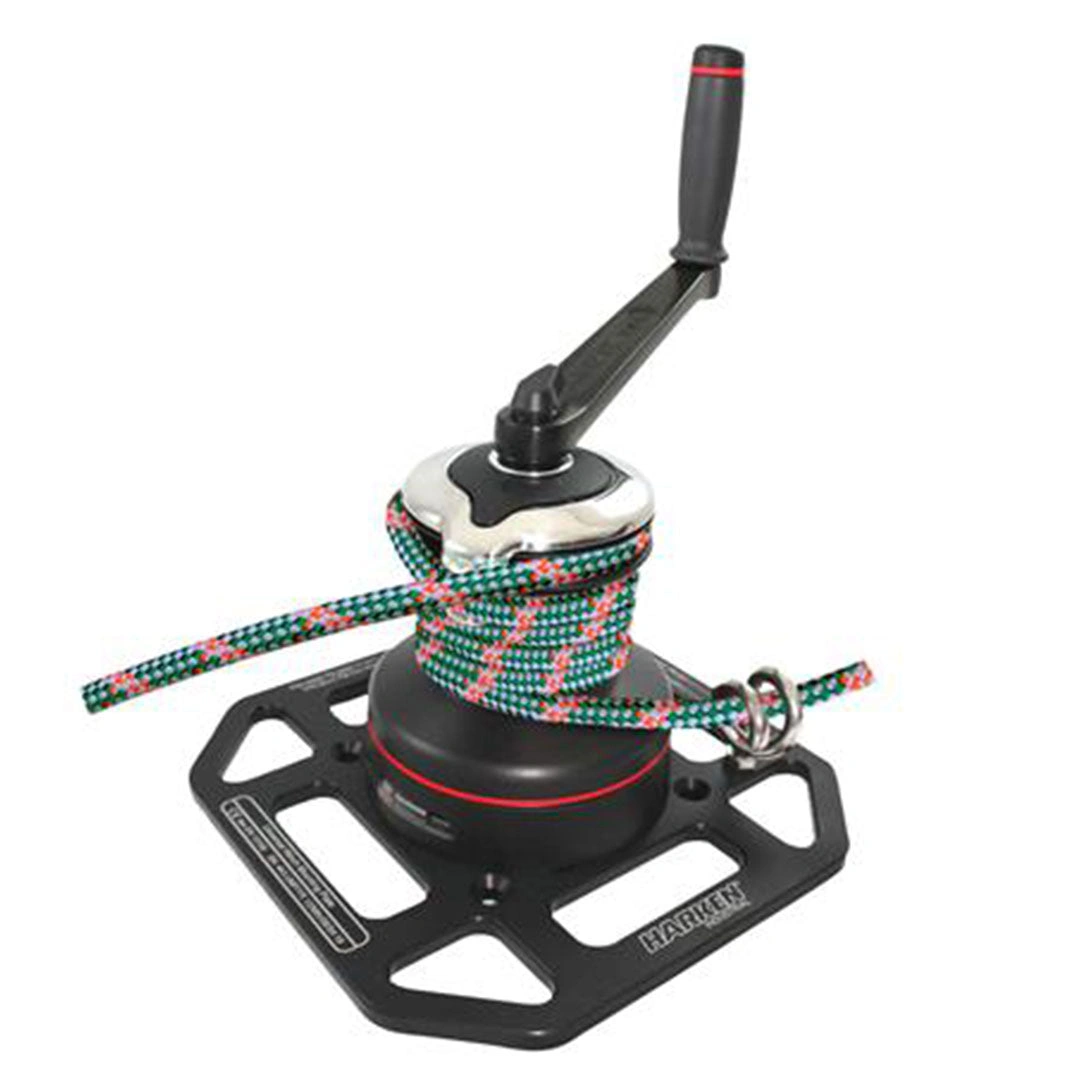

The Traction Winch provides the user with a lightweight portable winch mounted to a sturdy adaptor plate. Can be mounted to a tripod. Simple to use and ideal for a diverse range of lifting and load pulling applications. For use with multiple attachments depending on the environment and industry; from ratchet straps, M10 bolts, carabiners, to scaffold clamps. The Traction Winch 500 includes: Universal mounting plate, 40.2 Harken winch and Harken 10-inch winch handle.

Design

The mounting plate is sculpted to remove excess weight and provides multiple attachment points without compromising strength. The pigtail line lead ensures correct alignment and loading of the winch for maximum efficiency.

Fiber Rope

The winch is designed for use with fiber rope up to 12 mm (1/2″) in diameter, reducing weight and allowing alignment to the load. The unique drum design maximizes grip on the rope, while the drum’s smooth surfaces reduce rope wear.

Winches

Winches feature 17-4 PH stainless steel load-carrying gears and pins for strength and durability.

Specifications

• Weight: 15.4 lbs (7.000 kg)
• MBS: 24.5 kN (5508 Ibf)
• Working Load Limit (WLL): 4.9 kN (1102 Ibf)
• Length: 11.40” (29.0 cm)
• Width: 11.40” (29.0 cm)
• Compliant: CE, EN 13157
